Our factory has been producing rotary die board more than 9 years since the year of 2006.

Quality of rotary die board is reliable and steady, sold to most of die makers in China, also exported to Southeast Asia, Australia and New Zealand, Middle East, South Africa, Europe, America, etc.

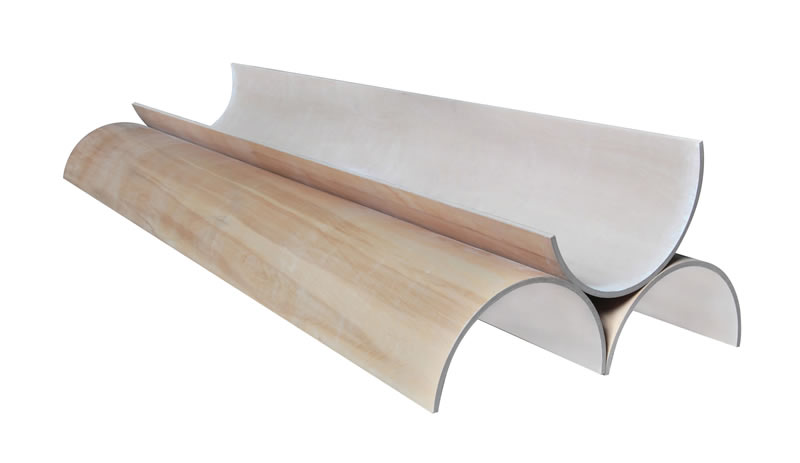

Rotary Die Board:

Usage: make steel rule rotary cutting dies for rotary die cutter

To Cut: perfect for laser cutting, and manual jigsaw cutting

Specification:

Wood: 100% beech wood from Europe

Thickness: standard 13mm (1/2”), special 15 or 16mm

Length: max 3000mm (120”)

Edge trimming and calibrated straight cutting by automatic saw.

Internal Diameter: any size between 174-800mm, such as:

174/180/250/270/290/360/410/432/440/487/536/676/755/798/800mm, etc.

Internal Diameter Tolerance:

+2/-2mm for 174-300mm

+2/-3mm for 300-360mm

+3/-3mm for 360-487mm

+5/-4mm for 536-800mm

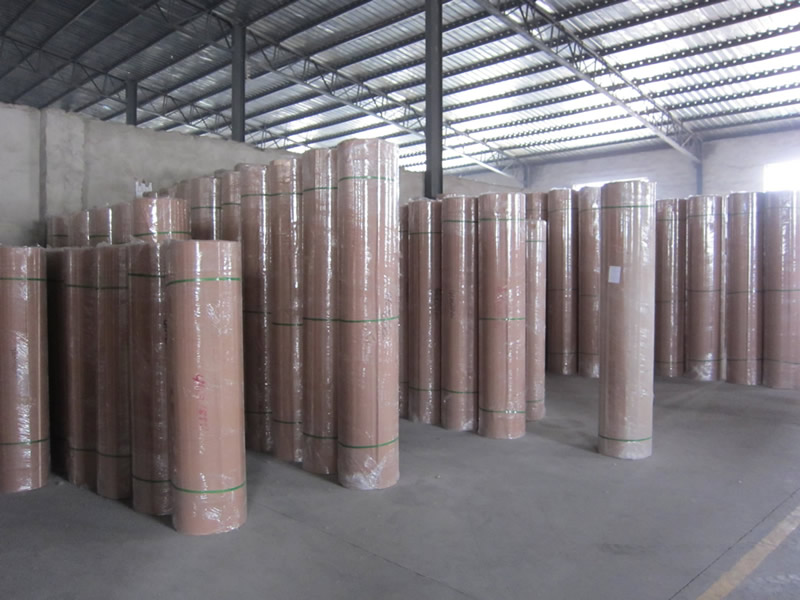

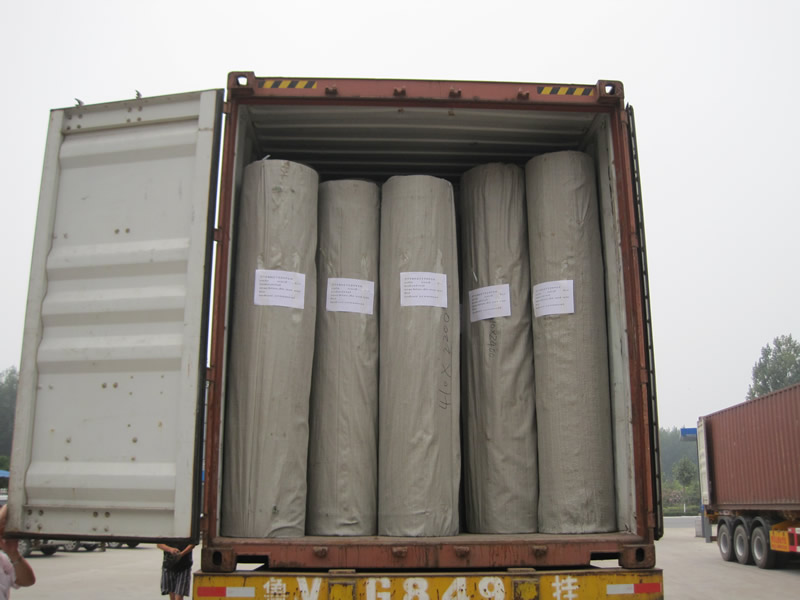

Packing: 5 pieces/roll

Inside: shrinking film, Outside: weaving bag

For more information, please feel free to contact us.
